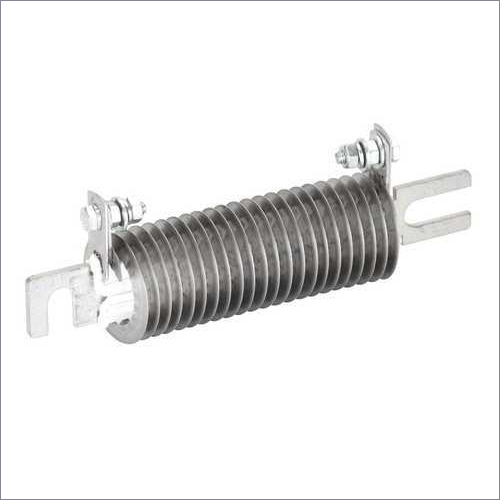

Edge Wound Resistors

Edge Wound Resistors
Edge Wound Resistors
Send Inquiry
Product Code : 02
Price And Quantity
  • Price
  • 2,000/ Piece INR
Product Specifications
  • Product Type
  • Edge Wound Resistors
  • Application
  • Medical equipments, Humidity Chambers
  • Supply Voltage
  • 500 Watt (w)
  • Color
  • Black
Product Description

Edge Wound Resistor provides supply voltage of 500 W and available in varied power voltages viz. 750W, 1000W, 1250W and 1500W. It is designed in compact and spiral style which helps in regulating power supply voltage to the electronic devices. This is equipped with terminal clamp, alternate mounting and has stainless steel elements & terminals. Edge Wound Resistor is surface coated with powder paint to make resistant to corrosion and avoid oxidation reaction. The industrial resistor has excellent tolerance & insulation resistance as well as is shock & vibration proof. It is simple to install in medical equipments and humidity chamber.

Technical specification

For Short Duration

500 Degree C

Dielectric Strength

2500 VAC



Temperature Coefficient

+/-55 PPM/Degree C to 260 PPM/Degree C

Short Time Overload

10 X Wattage Rating for 5 Sec.

Resistance Tolerance

+/-10 %


25 X Wattage Rating 1 Sec.

Insulation Resistance

20 Mohm

Download Brochure
