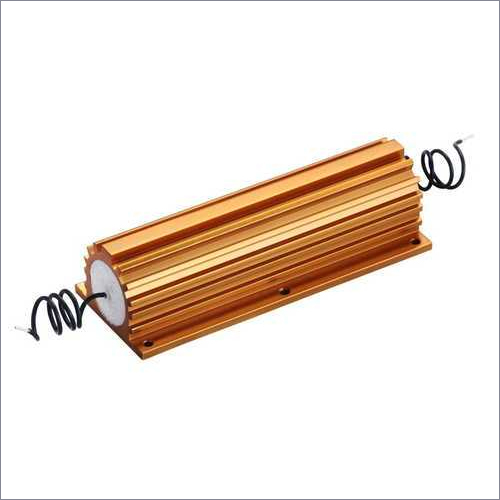

Aluminium House Wire Wound Resistor

Aluminium House Wire Wound Resistor

100 INR/Piece

Product Details:

  • Power Supply AC1000V for 5kw & 10kw
  • Product Type Wire Wound Resistor
  • Application Electrical
  • Color Copper Color
  • Click to View more
X

Aluminium House Wire Wound Resistor Price And Quantity

  • 1 - 1000 Piece
  • 100 INR/Piece

Aluminium House Wire Wound Resistor Product Specifications

  • Wire Wound Resistor
  • Electrical
  • AC1000V for 5kw & 10kw
  • Copper Color

Aluminium House Wire Wound Resistor Trade Information

  • 1000 Piece Per Month
  • 2 Week

Product Description

Extensive usage in heating appliances and industrial machines, this resistor is manufactured by utilizing optimum quality basic materials and housed with top grade aluminum with the help of modern technology under the stern guidance of our diligent professionals. Apart from this, offered Aluminium House Wire Wound Resistor is made available in variety of specifications as per clients specific needs and preferences.



Features of Aluminium House Wire Wound Resistor:

  • Easy to install
  • Excellent functionality
  • Long operational life
  • Sturdiness



Technical specification


Dielectric Voltage

1000 VAC for 5W & 10W,1500 VAC for 25 W & 200W,2000 VAC for 250 W

Power Rating

25-600 Watt

Operating Temp

-55-250 Degree C

Type

AHR

Terminations

Lugs for 5-50 W,Screws for 100-250 W

Temp Coeff

+- 50 PPM to 200 PPM

Overload

5 x wattage rating for 5 sec.

Insulation Resistance

Greater Than 20 M Ohms

Watts

A
±1.0

B
± 0.25

C
Max 4.0

D
± 0.25

E
± 1.60

F
± 1.00

G
± 1.00

H
± 0.80

l
± 0.25

J
± 0.80

K
± 0.13

L
Max

M
± 1.60

N
± 0.50

P
± Min

Q
± 0.13

R

S

T


5

28.6

12.5

2.00

11.3

15.3

6.80

8.50

12.5

-

16.4

2.40

8.20

3.40

1.70

1.60

1.30

100

100

2.0

0.1W-500

10

34.9

15.9

2.40

14.3

19.1

7.90

10.7

15.9

-

20.4

2.40

9.90

4.20

1.90

2.00

2.00

100

100

2.0

0.1W-1K

25

50.0

20.0

4.40

18.3

27.0

11.2

14.0

20.0

-

27.5

3.18

14.0

5.90

1.90

2.00

2.00

150

150

1.5

0.1W-5K

50

71.0

21.4

5.00

39.8

50.0

11.2

16.0

21.4

-

29.0

3.18

15.5

7.90

2.25

2.00

2.00

150

150

3.0

0.1W-10K

100

95.0

37.0

15.0

35.0

65.0

15.0

26.0

37.0

-

47.0

5.00

26.0

11.0

3.50

4.00

-

150

200

3.0

0.1W-20K

150/200

139

57.0

9.50

70.0

89.0

25.0

46.0

57.0

-

73.0

5.00

45.0

20.0

5.00

5.00

-

150

300

3.0

0.1W-35K

250/300

178

63.5

8.00

98.4

115

32.0

54.0

63.5

76.0

76.0

5.00

56.0

25.0

5.00

6.00

-

300

300

3.0

0.1W-50K
