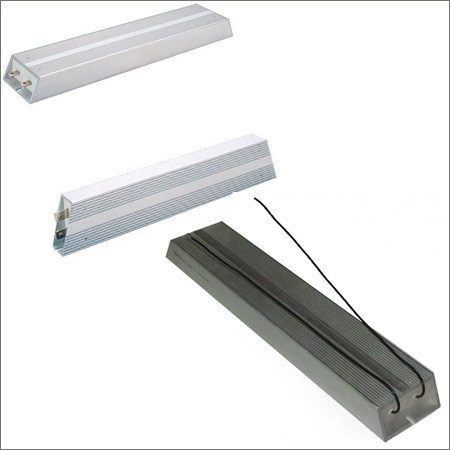

Metal Clad Braking Resistor

Metal Clad Braking Resistor
Metal Clad Braking Resistor
Product Code : E 09
Brand Name : ENAPROS
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Description

 Click here for more details

Metal Clad Braking Resistor ( EMCH / EMCV)

By keeping track with the market developments, we are engaged in offering an extensive range of Metal Clad Braking Resistor. This resistor is used for various electrical applications. Designed in compliance with the international quality standards using optimum quality raw material and advanced technology, we offer this resistor in different technical specifications as per the requirements of clients. The offered resistor is appreciated for its superior performance, high durability, robust construction and excellent functioning. This Metal Clad Braking Resistor is offered at market leading price to the clients.

Features:

  • Low Price Small Size.
  • High Power and Excellent load life stability
  • Custom built resistors is our speciality.
  • Wire terminals available. Standard length 300mm longer length upto 1.25 mtrs. can also be supplied.
  • High-surge-resistant items are available.
  • High Power and Excellent load life stability
  • Self-extinguish material is used in encapsulation.
  • Strongly resistant to moisture & solvent.
  • Excellent short time over load
  • Models with thermal switch available.
  • Non-inductive type available.

Specifications

On Heat Sink 60W-500W

HEATSINK SIZE

Free Air 60W-150W

60W-120W : 200X200X3mm

Free Air 200W-300W

150W-300W : 300X300X3mm

Free Air 400W-500W

400W-500W : 450X450X3mm

Free Air 750W-1000W

750W-1000W : 600X600X3mm

If finned heatsink is utilized, surface area should be equal to the above heat sink area.

Operating Temp.

-55°C - +275°C

Insulation Resistance

>20MW MIN

Dielectric Strength

AC1500V, 3500V, 5000V for 1 min

Temp. Coefficient

50 ppm/°C, 100 ppm/°C, 260 ppm/°C

Short Time Over Load

10 X Wattage Rating, 5 sec

Moisture resistance

Temp 40°C moisture 95% DC100v500h

Thermal Shock

Wattage Rating 30min. -25°C, 15min

Vibration

10c/c  50 c/s  10 c/s (1min) -2h each of paralleled and right angle.

Load Life

Wattage Rating 1.5 h On, 30min off, 1000h

Derate to zero

at 350°C

EMC Series With Heat Sink

EMC Series Without Heat Sink

  • For horizontal Mounting add. For Vertical Mounting add. For Non-Inductive type add ex. EMC200 100R J 1005 where EMC200 is Cat. No., H indicates horizontal mounting, N indicates non-inductive, R indicates ohms, J indicates 5% tolerance (this can change), 1005 indicates month & year of manufacture
  • ex. HS-EMC200 100R J 1005 where HS- HS indicates extra external heat sink, H indicates horizontal mounting, N indicates non-inductive, R indicates ohms, J indicates 5% tolerance (this can change), 1005 indicates month & year of manufacture.
  • *Non UL certified.
  • In EMC series with Heat Sink, Weight of extra external heat sink is not included.
Aluminium Housed Metal Clad Braking Resistors
  1. On Heat Sink 60W~500W
  2. Free Air 60W~150W
  3. Free Air 200W~300W
  4. Free Air 400W~500W
Heat Sink Size
60W-120W : 200 x 200 x 3mm
150W-300W : 300 x 300 x 3mm
400W-500W : 450 x 450 x 3mm
If finned heatsink is used, surface area should be equal to the above heat sink area.


Operating Temp. -55°C - +275°C
Insulation Resistance 20MW MIN
Dielectric Strength AC 1000V, 2000V for 1 min
Temp. Coefficient 50 ppm/°C, 100 ppm/°C, 260 ppm/°C
Short Time Over Load 10 X Wattage Rating, 5 sec
Moisture resistance temp 40°C moisture 95% DC100v500h
Thermal Shock Wattage Rating 30min. -25°C, 15min
Vibration 10c/c ~ 50 c/s ~ 10 c/s (1min) -2h each of paralleled and right angle.
Load Life Wattage Rating 1.5 h On, 30min off, 1000h
Derate to zero at 275°C

Aluminium Housed Metal Clad Braking Resistors
Ask for Price


EMC SERIES WITH HEAT SINK
Cat. No. Watts@ 20°c
with heatsink
EMC SERIES DIMENSIONS (MM) Approx. Weight(g)
L1 L2 W H D
HS-EMC60 60 115 100 40 20 4.0 110
HS-EMC80 80 140 125 40 20 4.0 150
HS-EMC100 100 165 150 40 20 4.0 180
HS-EMC120 120 190 175 40 20 4.0 240
HS-EMC150 150 215 200 40 20 4.0 300
HS-EMC200 200 165 150 60 30 5.3 500
HS-EMC300 300 215 200 60 30 5.3 700
HS-EMC400 400 265 250 60 30 5.3 850
HS-EMC500 500 330 215 60 30 5.3 1000


EMC SERIES WITHOUT HEAT SINK
Cat. No. Watts@ 20°c
with heatsink
EMC SERIES DIMENSIONS (MM) Approx. Weight(g)
L1 L2 W H D
EMC60 48 115 100 40 20 4.0 110
EMC80 64 140 125 40 20 4.0 150
EMC100 80 165 150 40 20 4.0 180
EMC120 96 190 175 40 20 4.0 240
EMC150 120 215 200 40 20 4.0 300
EMC200 140 165 150 60 30 5.3 500
EMC300 210 215 200 60 30 5.3 700
EMC400 240 265 250 60 30 5.3 850
EMC500 300 330 215 60 30 5.3 1000


Ordering Instructions
  • For horizontal Mounting add ‘H’. For Vertical Mounting add ‘V’. For Non-Inductive type add ‘N’ ex. EMC200HN 100R J 1005 whereEMC200 is Cat. No., H indicates horizontal mounting, N indicates non-inductive, R indicates ohms, J indicates 5% tolerance (this can change), 1005 indicates month & year of manufacture
  • ex. HS-EMC200HN 100R J 1005 where HS-EMC200 is Cat. No, HS indicates extra external heat sink, H indicates horizontal mounting, N indicates non-inductive, R indicates ohms, J indicates 5% tolerance (this can change), 1005 indicates month & year of manufacture.

Aluminium Housed Metal Clad Braking Resistors
Ask for Price


EMC SERIES WITH HEAT SINK
Cat. No. Watts@ 20°c
with heatsink
EMC SERIES DIMENSIONS (MM) Approx. Weight(g)
L1 L2 W H D
± 0.5
A
± 0.5
b(g)
HS-EMC60 60 115 100 40 20 4.0 8.0 12.0 110
HS-EMC80 80 140 125 40 20 4.0 8.0 12.0 150
HS-EMC100 100 165 150 40 20 4.0 8.0 12.0 180
HS-EMC120 120 190 175 40 20 4.0 8.0 12.0 240
HS-EMC150 150 215 200 40 20 4.0 8.0 12.0 300
HS-EMC200 200 165 150 60 30 5.3 13.0 17.0 500
HS-EMC300 300 215 200 60 30 5.3 13.0 17.0 700
HS-EMC400 400 265 250 60 30 5.3 13.0 17.0 850
HS-EMC500 500 330 215 60 30 5.3 13.0 17.0 1000


EMC SERIES WITH HEAT SINK
Cat. No. Watts@ 20°c
with heatsink
EMC SERIES DIMENSIONS (MM) Approx. Weight(g)
L1 L2 W H D
± 0.5
A
± 0.5
b(g)
EMC60 48 115 100 40 20 4.0 8.0 12.0 110
EMC80 64 140 125 40 20 4.0 8.0 12.0 150
EMC100 80 165 150 40 20 4.0 8.0 12.0 180
EMC120 96 190 175 40 20 4.0 8.0 12.0 240
EMC150 120 215 200 40 20 4.0 8.0 12.0 300
EMC200 140 165 150 60 30 5.3 13.0 17.0 500
EMC300 210 215 200 60 30 5.3 13.0 17.0 700
EMC400 240 265 250 60 30 5.3 13.0 17.0 850
EMC500 300 330 215 60 30 5.3 13.0 17.0 1000


Ordering Instructions
  • For horizontal Mounting add ‘H’. For Vertical Mounting add ‘V’. For Non-Inductive type add ‘N’ ex. EMC200VN 100R J 1005 whereEMC200 is Cat. No., V indicates vertical mounting, N indicates non-inductive, R indicates ohms, J indicates 5% tolerance (this can change), 1005 indicates month & year of manufacture
  • ex. HS-EMC200VN 100R J 1005 where HS-EMC200 is Cat. No, HS indicates extra external heat sink, V indicates vertical mounting, N indicates non-inductive, R indicates ohms, J indicates 5% tolerance (this can change), 1005 indicates month & year of manufacture.
