High Power Coiled Wire Resistors

High Power Coiled Wire Resistors
High Power Coiled Wire Resistors
Product Code : E 06
Brand Name : ENAPROS
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Description

Click here for more details

We are recognized as one of the leading manufacturers, exporters and suppliers of qualitative series of Coiled Wire Resistors. These resistors are designed and manufactured in accordance with industry norms using coiling wire that is finished with ceramic insulators on a steel strip. The offered resistors are utilized in combination with appropriate control device to accelerate, dynamic braking of motors. We offer these Coiled Wire Resistors in varied technical specifications as per the requirements of clients.

Coiled Resistors

  • These resistors are constructed by coiling wire and supported by ceramic insulators on a steel strip.
  • The resistive element is of stainless steel, fecral or Nickel Chromium
  • The standard and terminal is welded or screwed firmly to the resistive element, which provides good electrical connections to the resistive elements.

Specifications:

  • The resistive element is of Nickel Chromium or fecral, stainless steel.
  • The standard end terminal is screwed or welded firmly to the resistive element, which renders excellent electrical connection to the resistive elements.

Features:

  • Very Economical
  • Low temperature coefficient elements for more stable resistance
  • With stands severe short time overloads
  • Reliable terminals
  • Resistors can also be supplied in enclosure
  • Custom built resistors can be made
  • Easy to assemble as a bank
  • Closer tolerance available.
  • Reliable terminals
  • With stands severe short time overloads
  • High temperature ceramic core resists vibration and shock
  • Low temperature ceramic coefficient elements for durable resistance
  • These can also be supplier in enclosure
  • Closer Tolerance available
  • Easy to assemble as a bank

Applications:

  • These are utilized in combination with appropriate control device to accelerate, dynamic braking of motors.
  • These resistors are also employed as neutral grounding resistors, DC and AC dynamic braking load banks, current limiting and blast for mercury vapor lamp.
  • These products are also ideally suitable for utilize in the secondary of AC wound rotor motors for accelerating speed regulating services.

Characteristics

Temperature Range

- 55oC to + 375oC

Temperature Coefficient

+50 ppm/oC to 260 ppm/oC

Short Time Overload

10 X wattage rating for 5 Sec.

1.Sec. Overload

25 x wattage rating

Resistance tolerance

+10%

For short duration

500oC

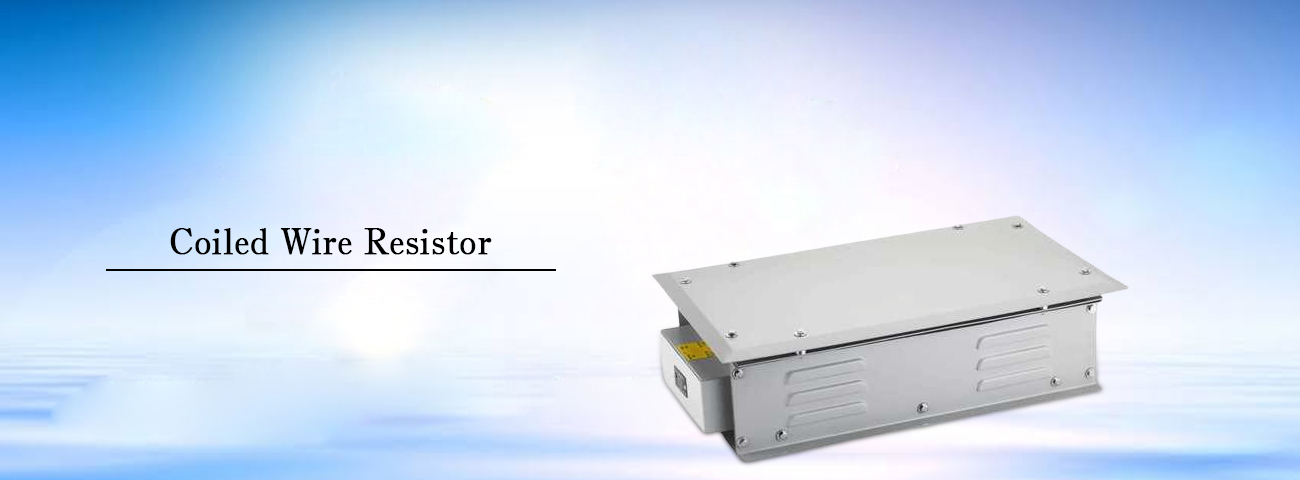

Enclosure Details:

  • Main Frame : 2.5mm
  • Side Panel: 1mm
  • Mounting Channel: 2mm
  • Extended Canopy (Optional)
  • Powder coating "Siemens grey texture
  • Suitable for wall mounting upto 8kw only
  • Protection class available as per requirement
